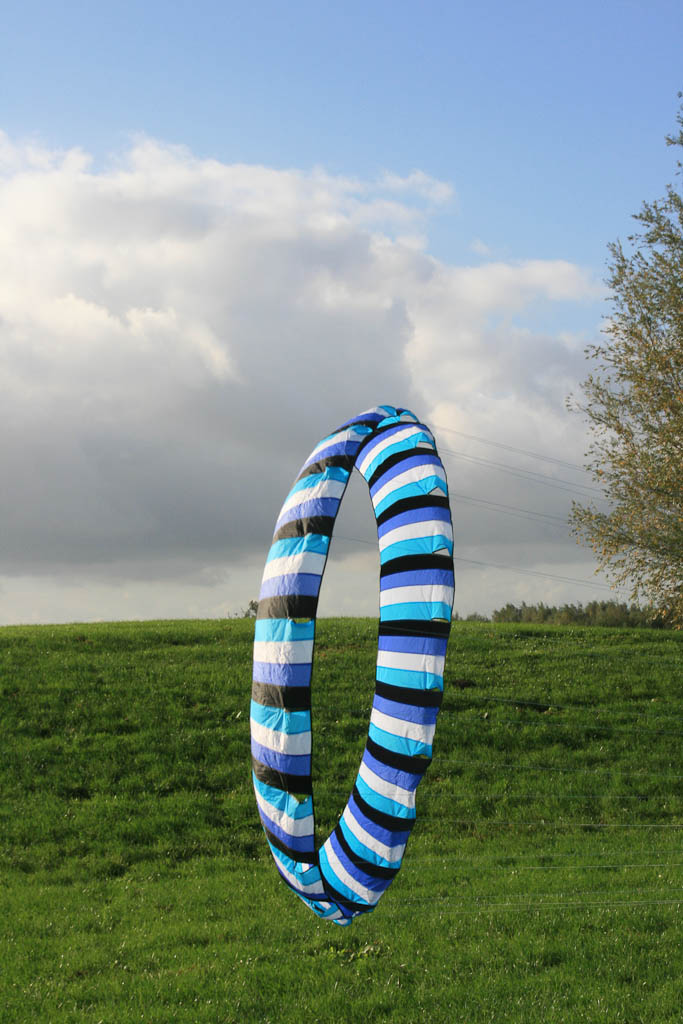

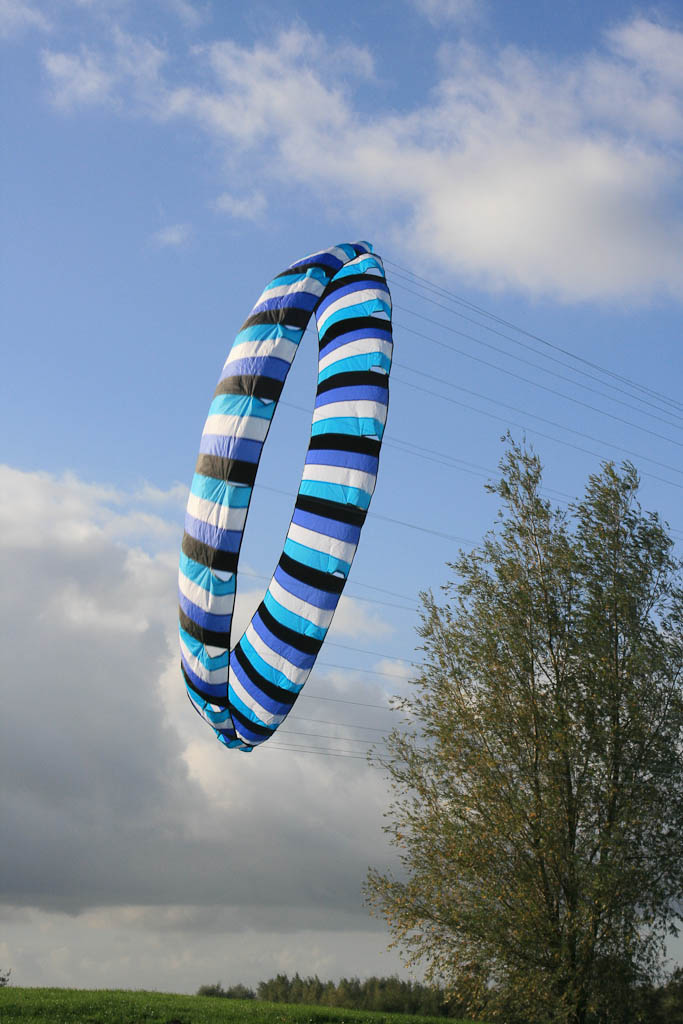

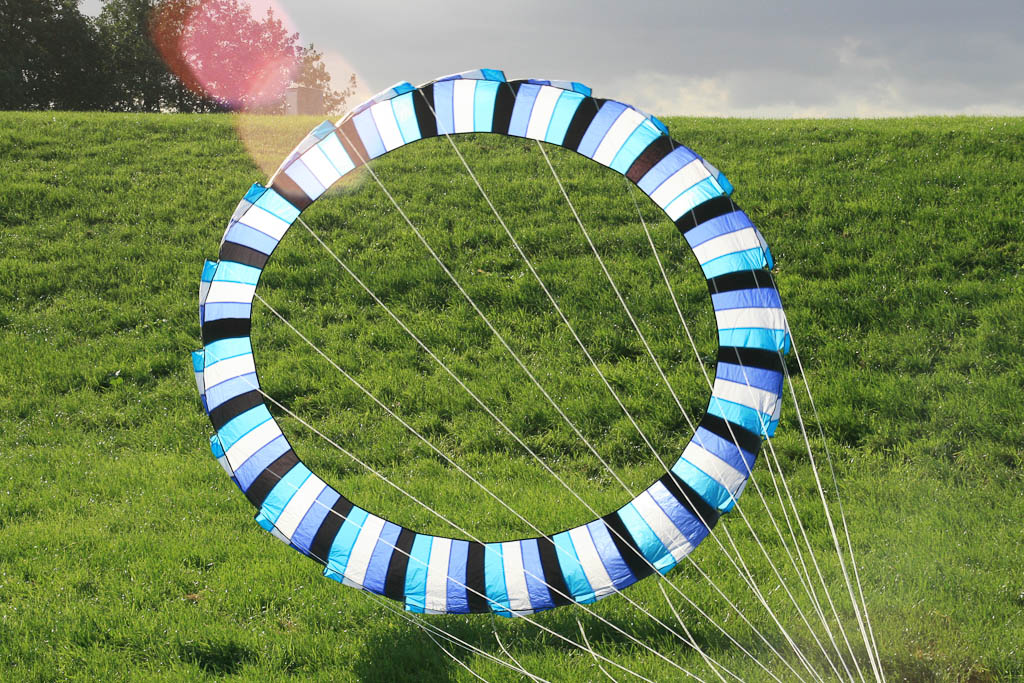

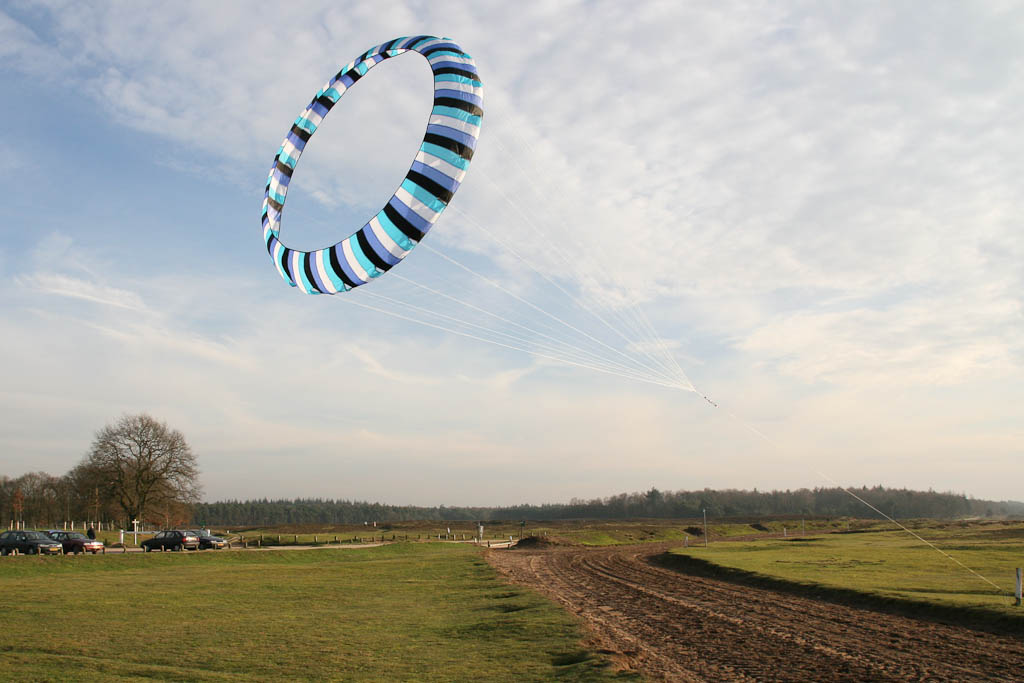

Rotating Ring, 2m
|
Manufacturer/builder:
|
EveKites: Erik |
|
Designer:
|
Frans Nijhuis |
|
Buildplan:
|
Rotating Ring |
|
Owner:
|
EveKites, 8/2006 |
|
Dimensions (wxhxd):
|
200 x 200 cm (opp: 2.70 m2) |
|
Windrange:
|
1.0 - 4.0 bft |
|
1-line
|
(150 kg) |
|
Materials:
|
n.v.t., Mirai: White, Light Blue, Black, Blue |
|
Remarks
|
OuterRadius 100 cm InnerRadius 80 InsideRadius 30 cm NumberOfCells 20 Arch = 70.5 Degrees Arch Length = 36.9 cm Eff.Surface = 1.1 m2 Min.Req.Fabric = 2.7 m2 One Bridle = 5.0 m Total Bridle = 102.0 m Stop sewing = 27.5 cm Flap size = 4.8 cm |
|
Flying characteristics
|
Schijnt een beest te zijn bij toenemende wind (vanaf 4 bft geloof ik). |
Rotor200
There are 13 images in this album.
